UPGLASS
Glass Systems

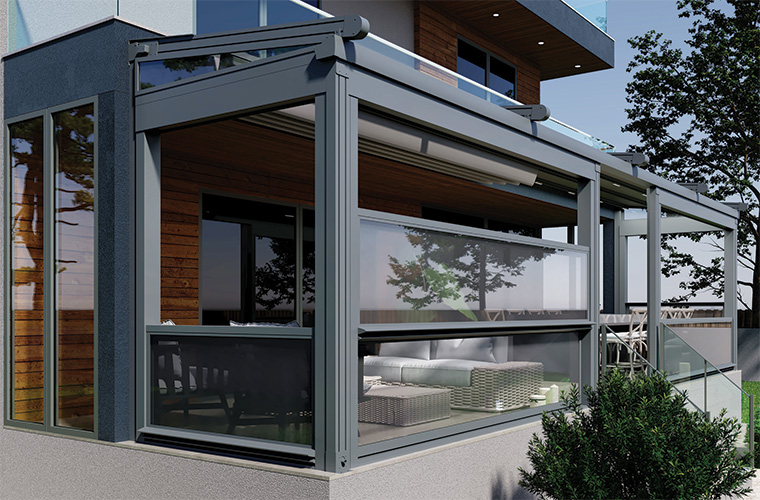

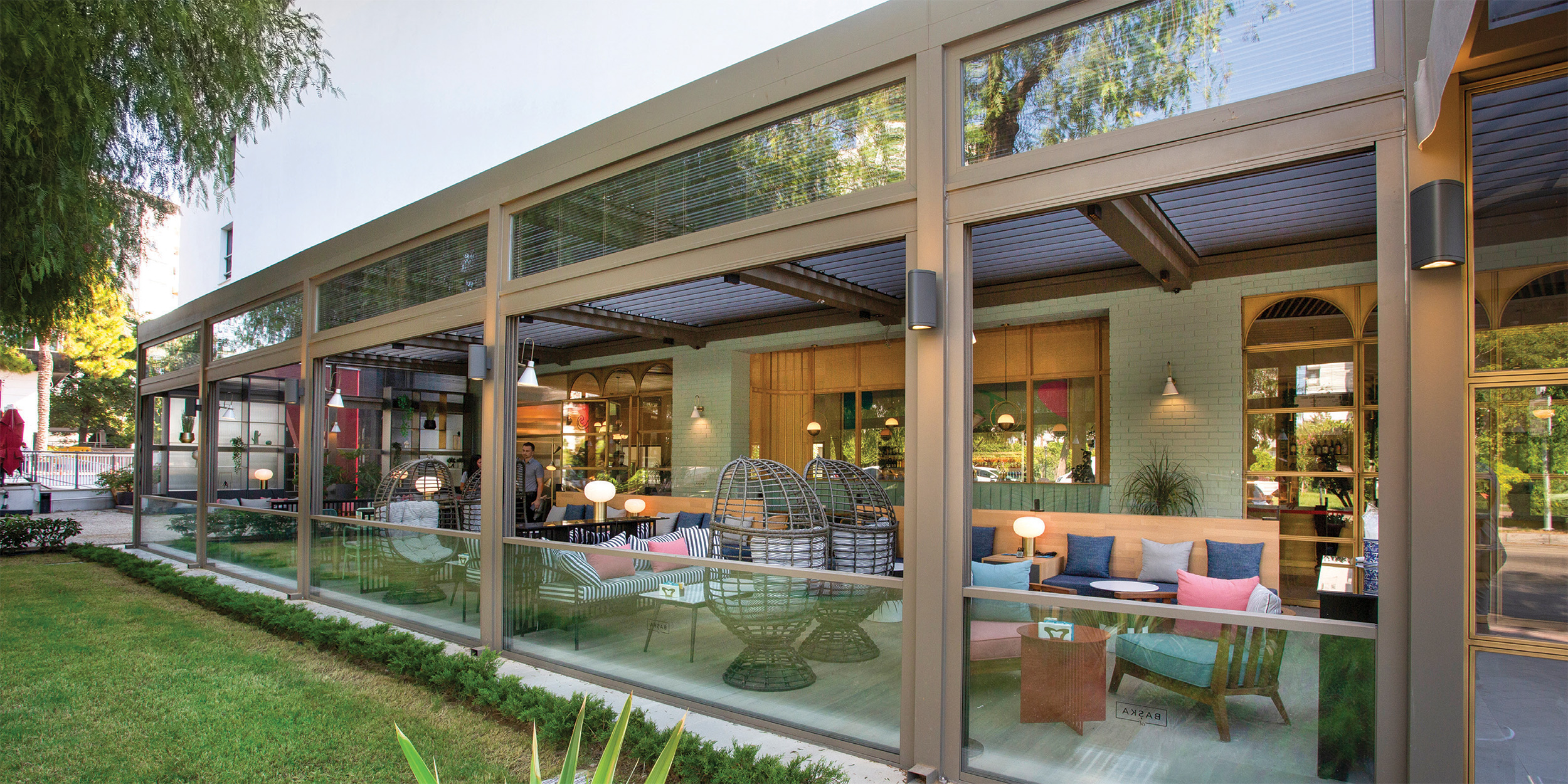

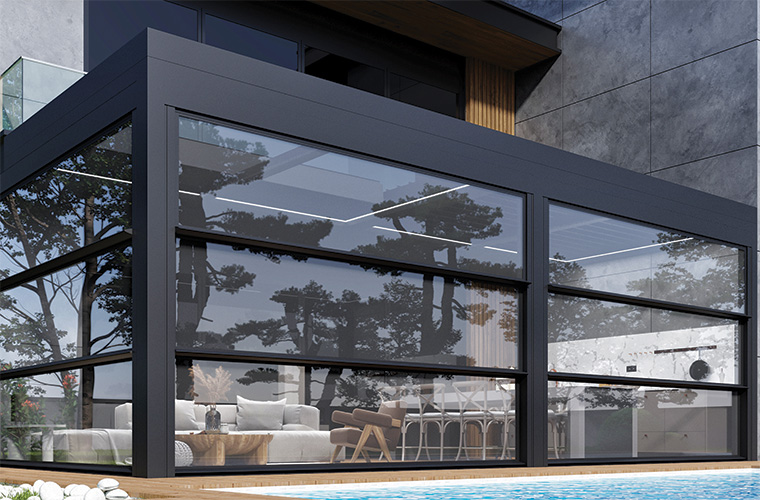

Matek Grup Upglass is a fully automatic, remote controlled, 100% cleanable, motorized vertical glass system. Upglass telescopic guillotine lenses are a very high quality and stylish solution with a high production standard. It also offers optimum performance in terms of thermal insulation, daylight, bright living space and energy saving. Matek Grup Upglass is a customized architectural glass solution, and different configurations can be created according to the needs of your space. Upglass, an extremely durable and stylish movable glass system, is ideal for restaurants, terraces and gardens. Matek Grup Upglass with its patented design offers 100% cleaning from inside, even on high floors.

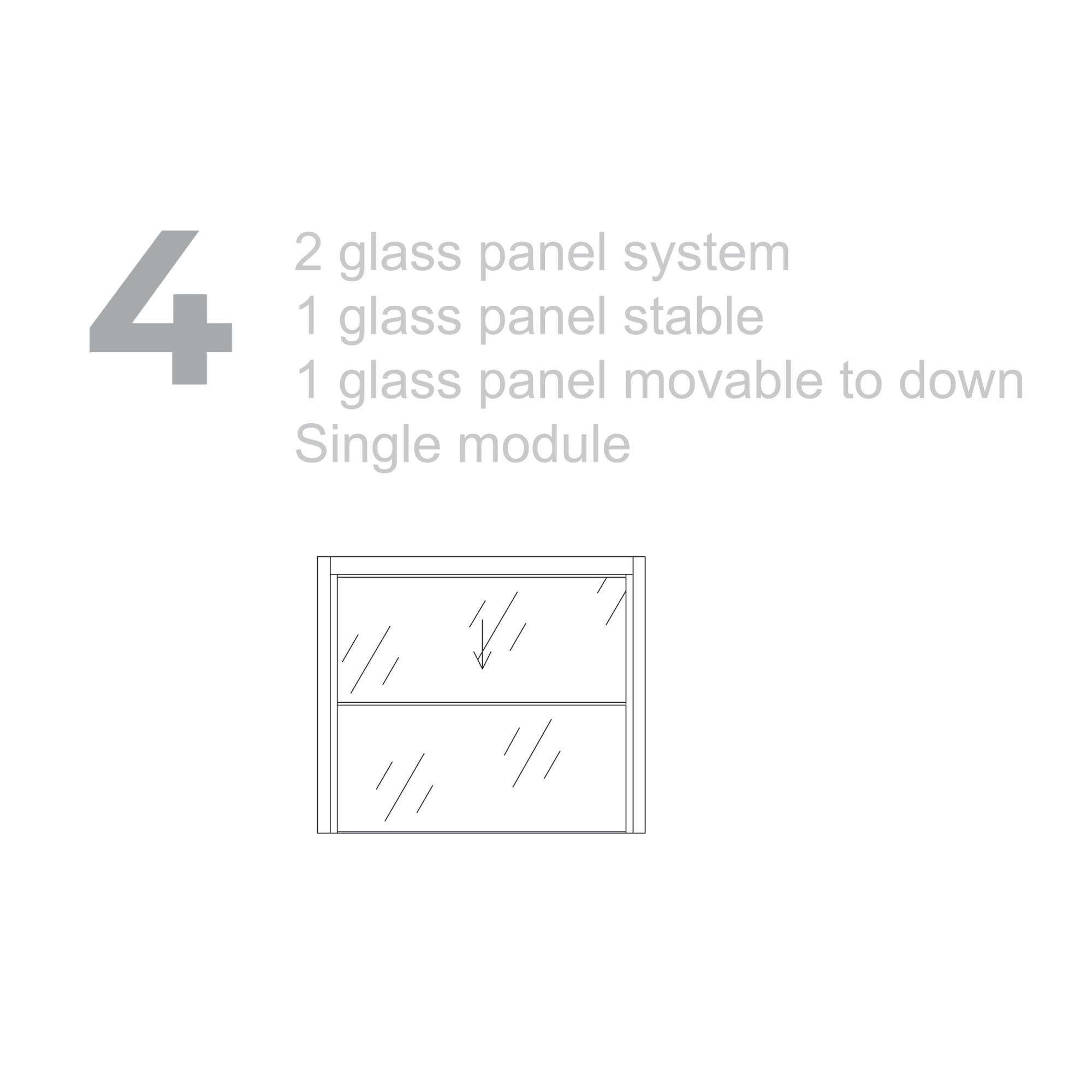

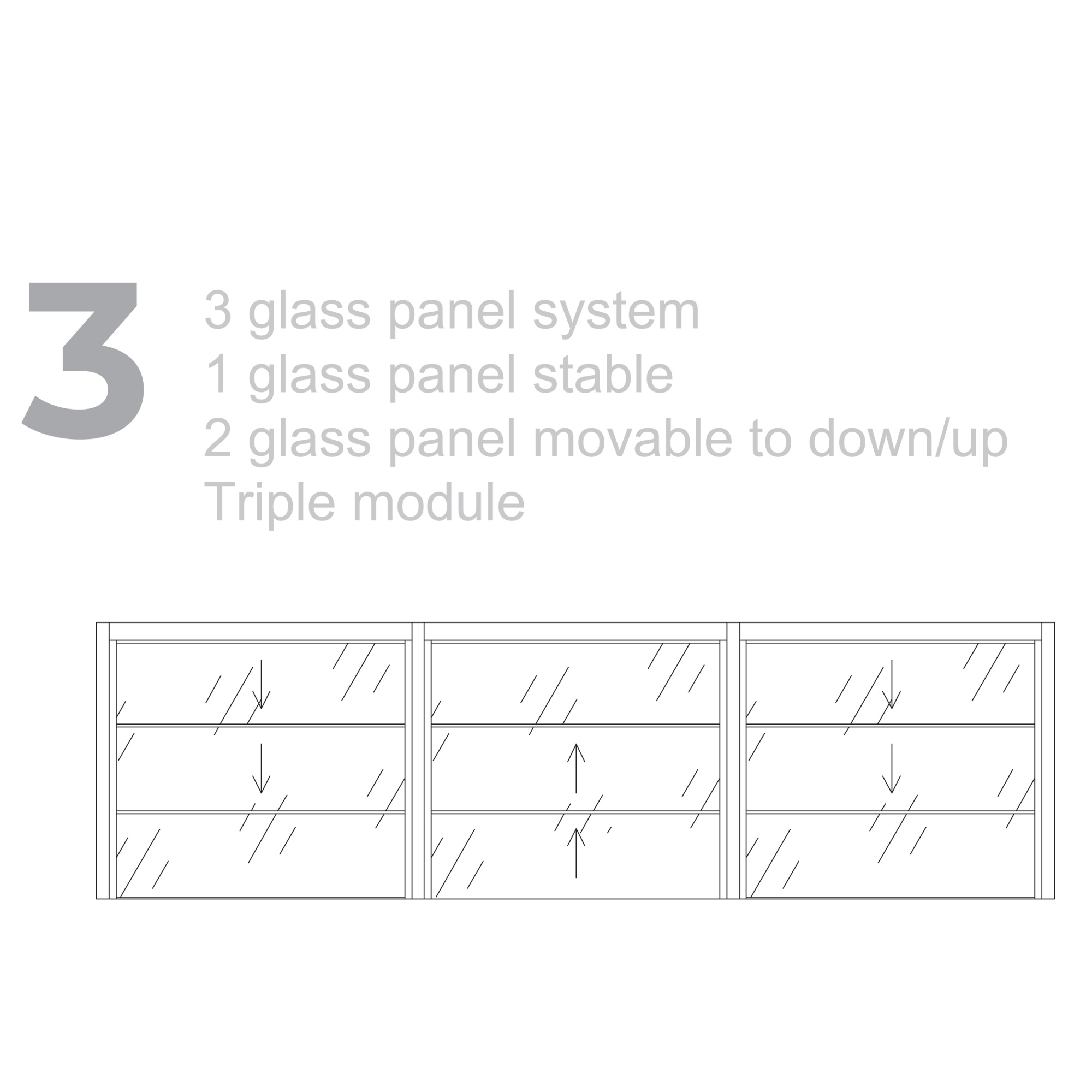

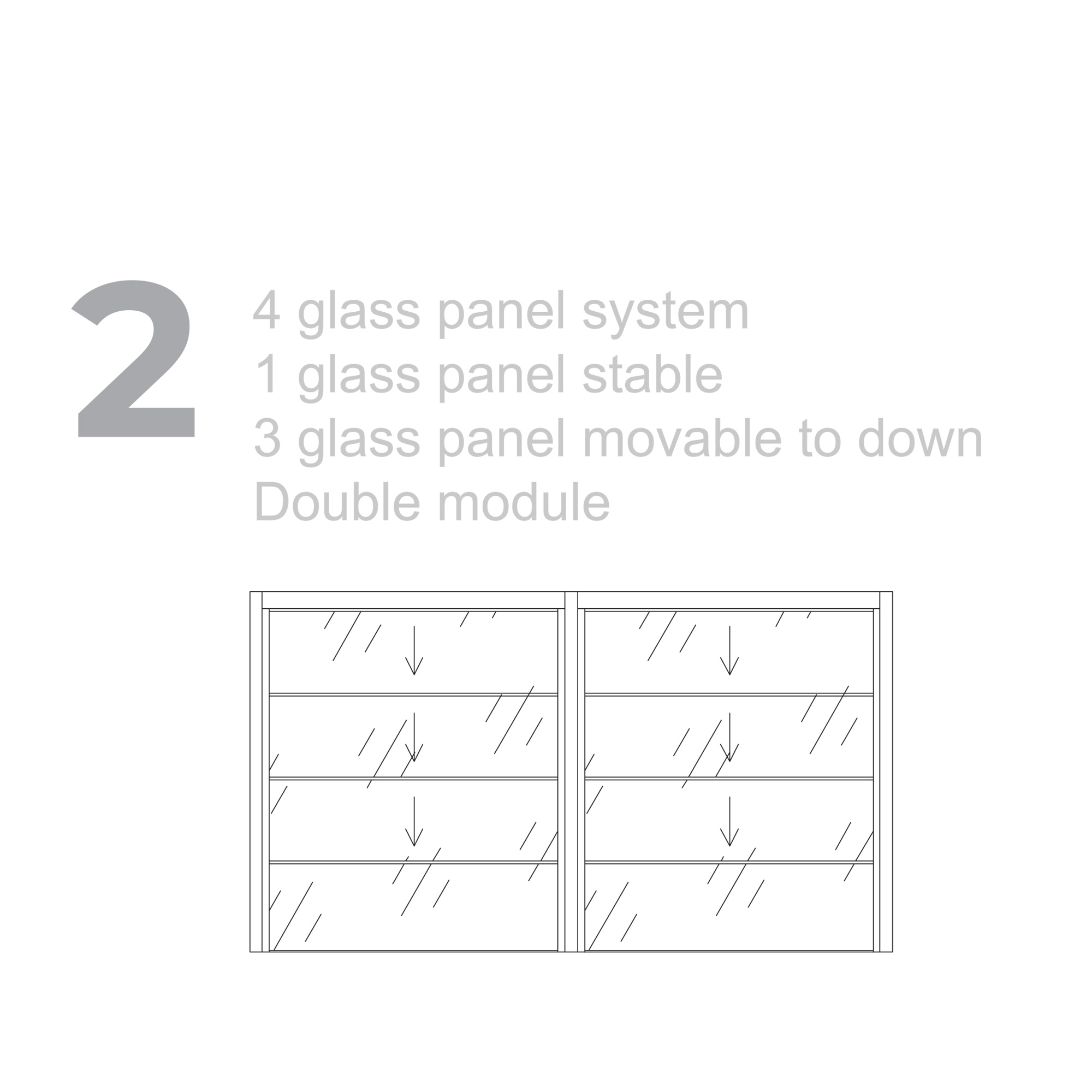

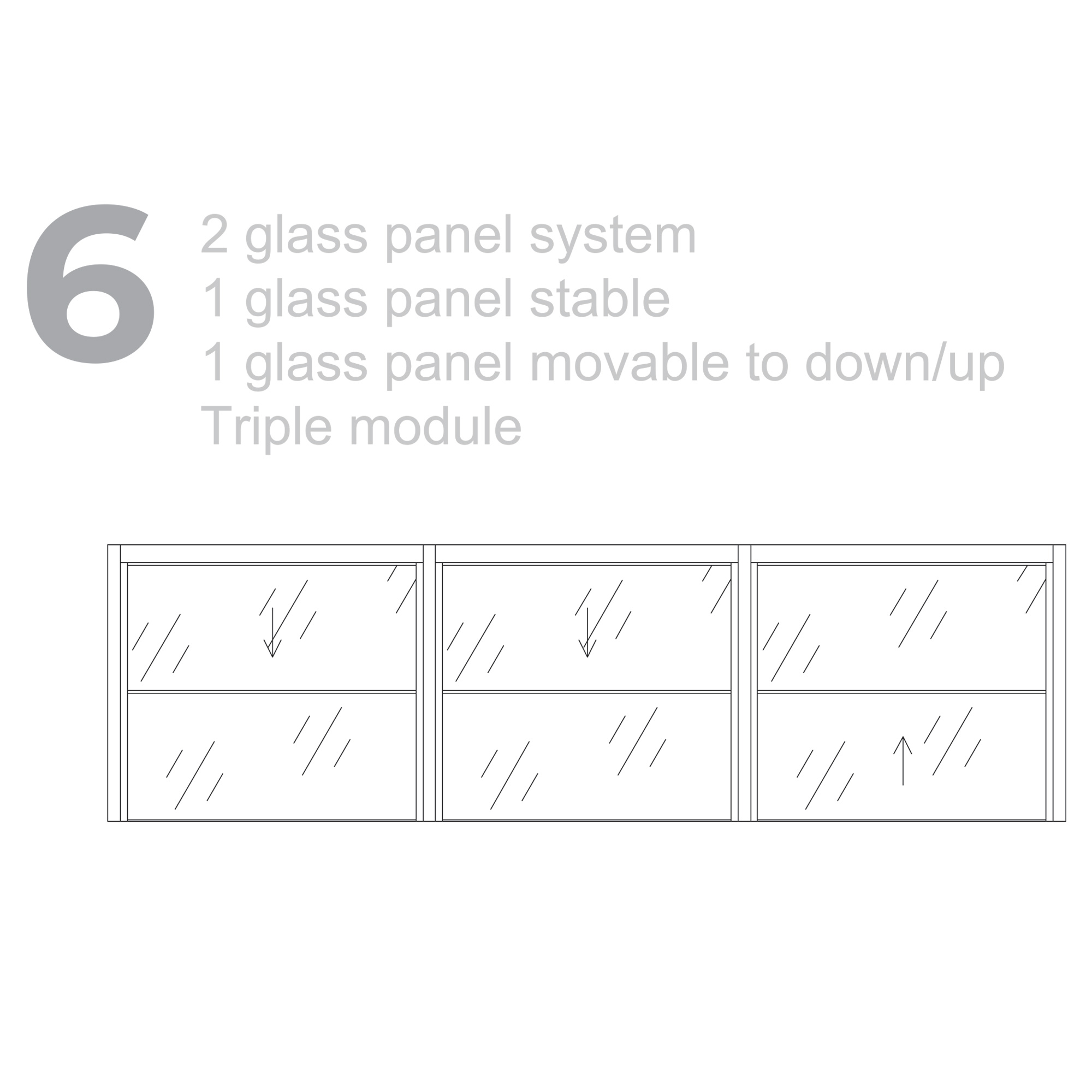

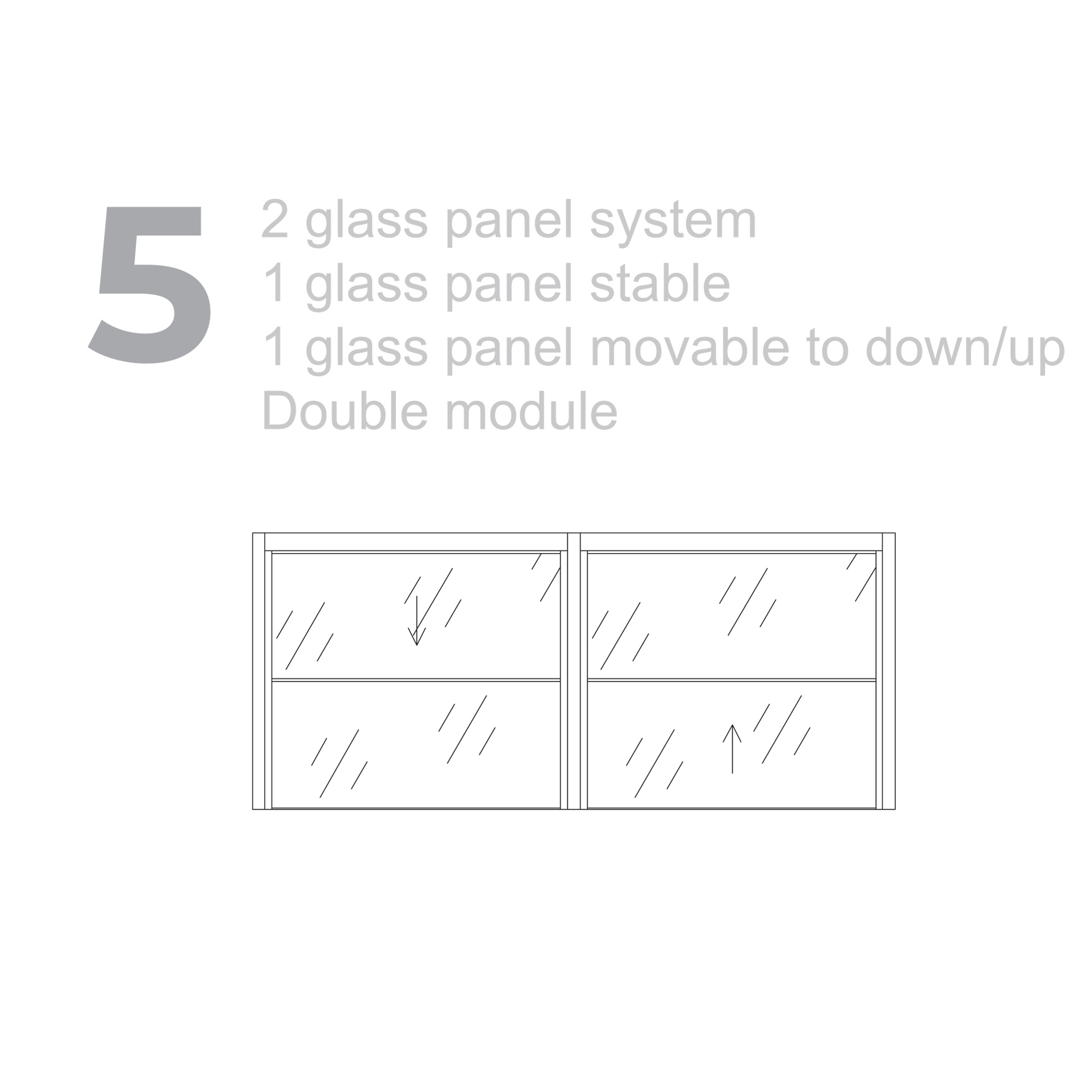

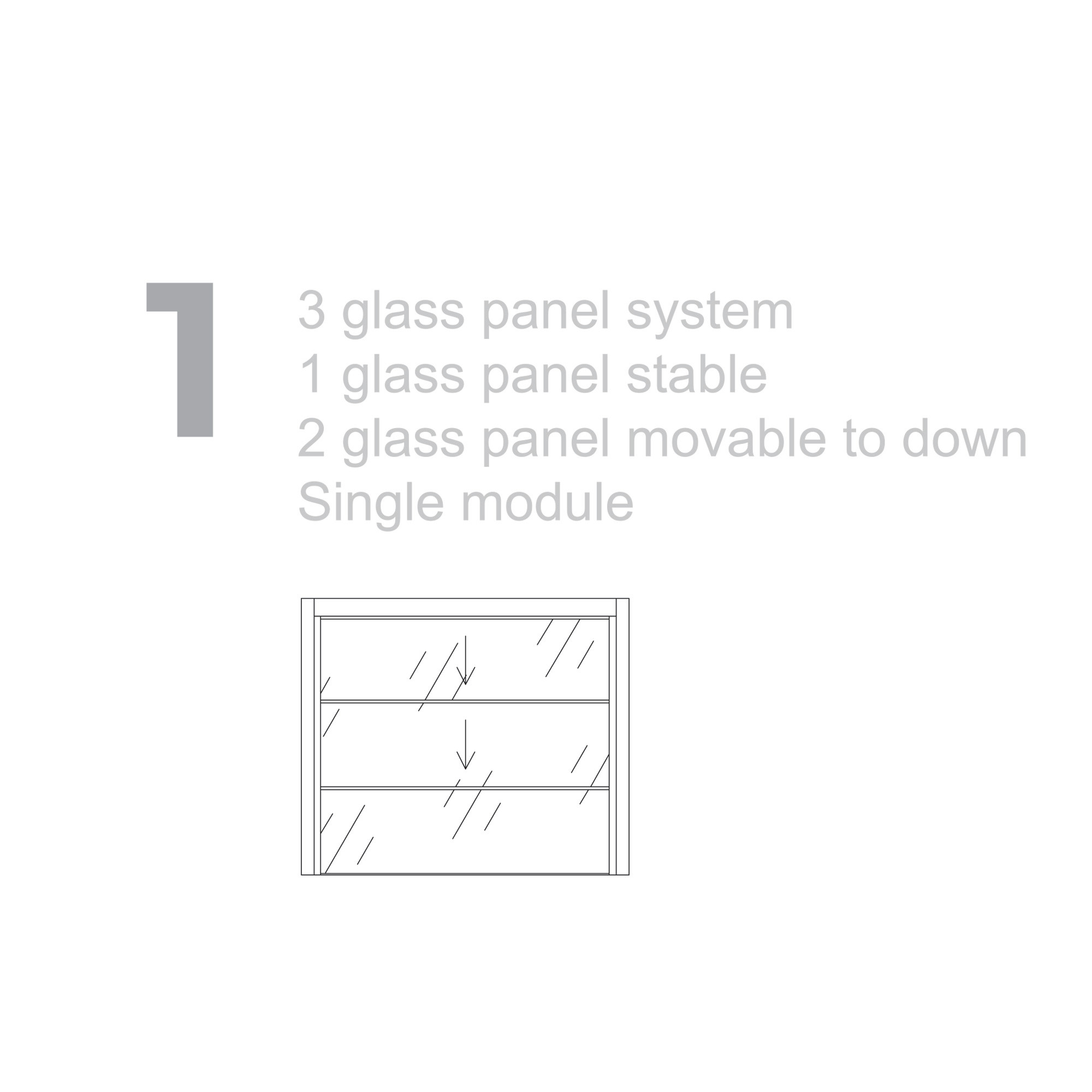

Configurations
Technical Data

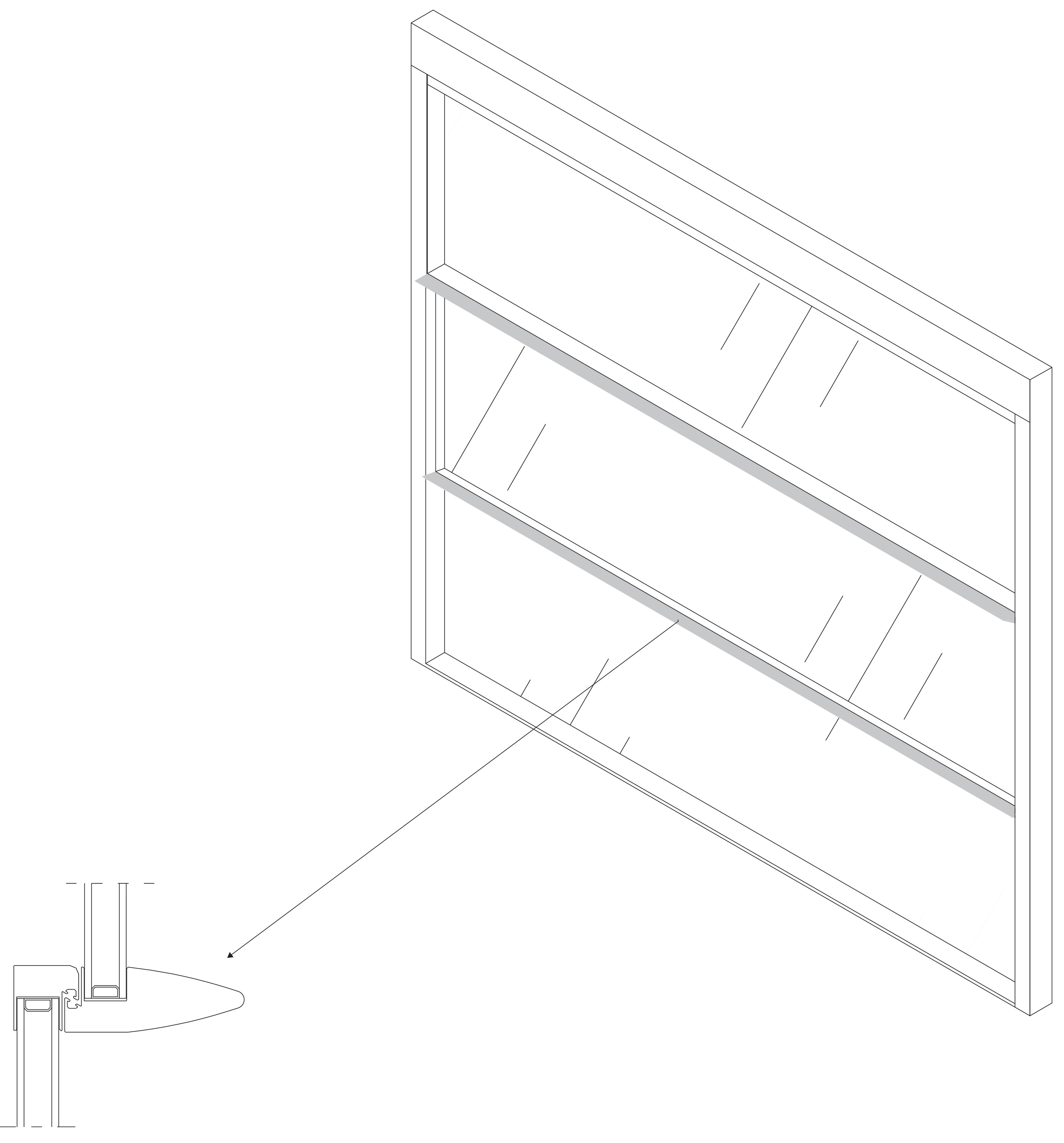

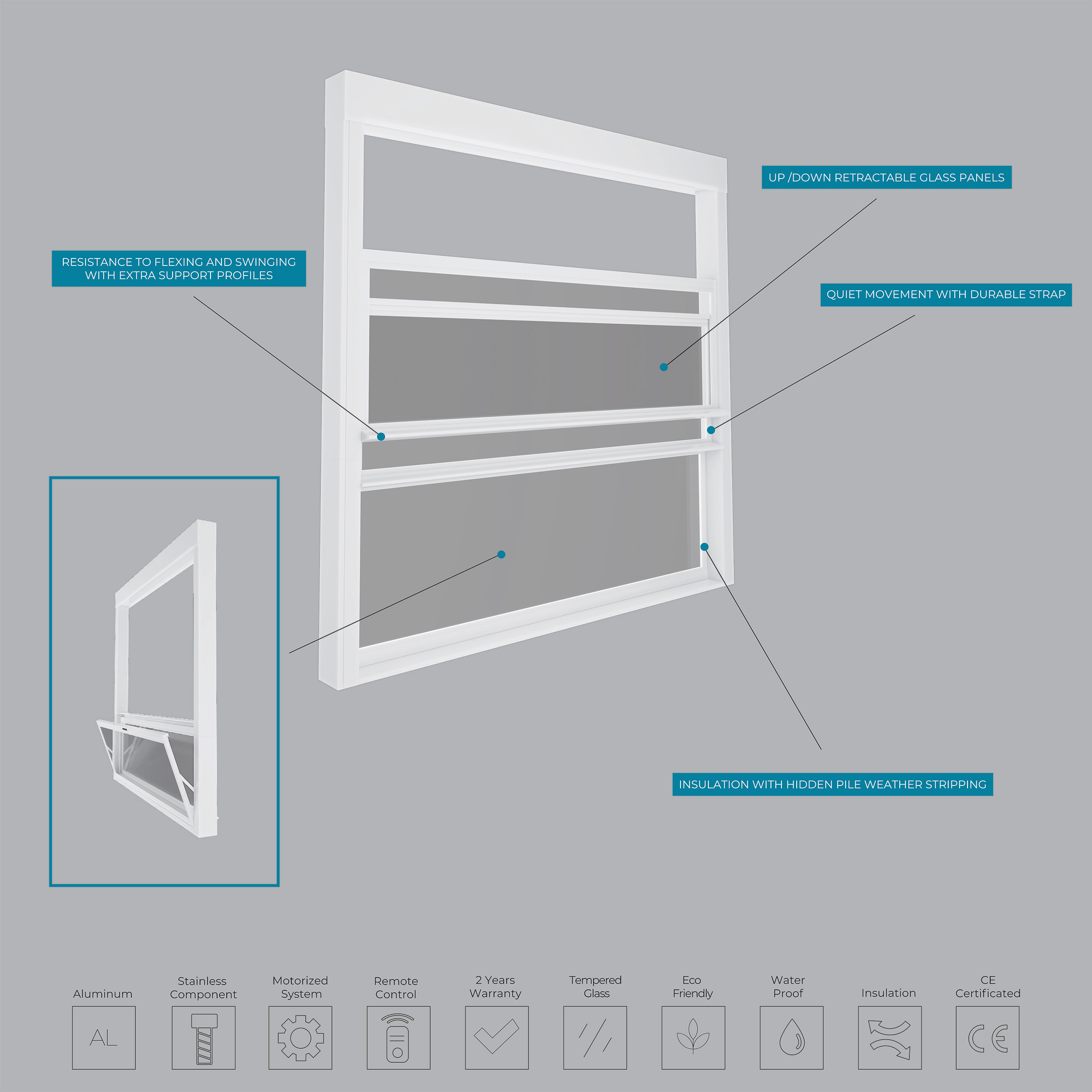

Extra Support Profile
Matek Grup Upglass can be applied as a single module up to 5000 mm wide with its patented extra support profile. These wide-angle glasses provide a perfect view.
s

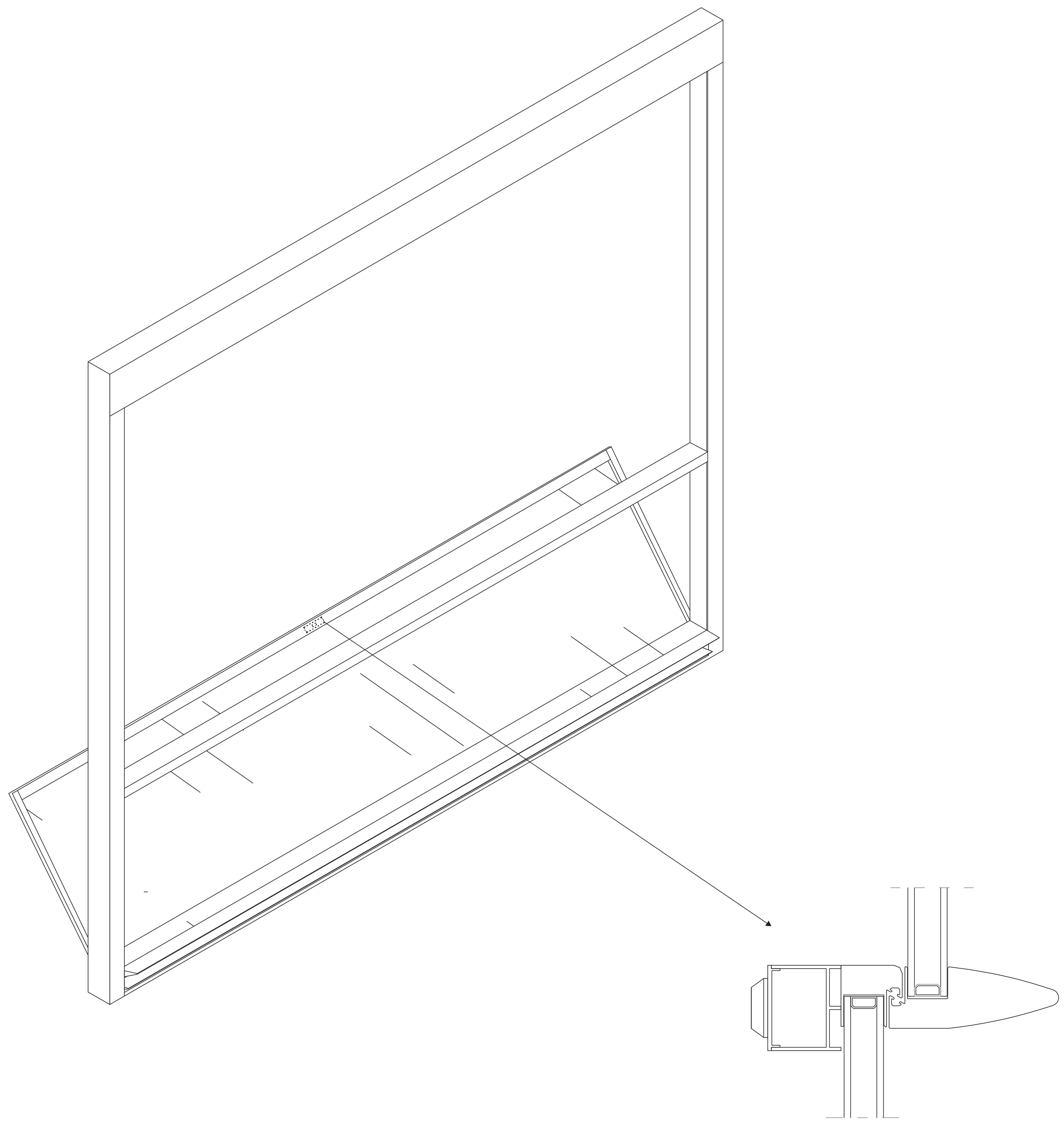

%100 CLEANABLE DESIGN
The patented design of Upglass offers the opportunity to clean the inside and outside of the glass fully, even in high buildings. This cleaning can be done easily from the inside of the building.
| Maximum width for each module | 5000x2800 mm |
| Extra support profile | Optional |
| 100% cleanable mechanism | Optional |
| Glass thickness / Air gap | 4 mm/ 16 mm AG/4 mm - 5 mm/14 mm AG/5mm |
| Glass features | Tempered insulating glass |
| Solar Low-E glass | Optional |
| Glass colour | Optional |
| Number of glasses for each module | 2 - 3 - 4 |
| Extruded aluminum | ✓ |
| Flexibility to be applied to different areas and sizes | ✓ |
| Durability | ✓ |
| Easy cleaning and maintenance | ✓ |
| Maximum protection against weather conditions | ✓ |
| Motorized | ✓ |
| Curtain systems | Optional |
| Awning systems | Optional |
| Colour | Single / Multi |
| Powder Coated | ✓ |
MATEK GRUP UPGLASS OFFERS "UNOBSTRUCTED VISION" WITH ITS MAXIMUM SHARPNESS RANGE VERTICAL FRAMELESS AND MINIMALIST HORIZONTAL FRAME
